Setting the Standard for EDM Machining

Milco Wire EDM carries with it a long standing history of supplying quality products to companies in advanced industries such as energy, aerospace, defense, and medical. Milco Wire EDM combines various machining methods (wire EDM, sinker EDM, and small hole drilling) with a complement of water jet machines and more conventional methods to handle any job no matter how variant the machining requirements. With Nadcap, ISO 9001:2008, and AS9100 certifications, ANAB accreditation, and ITAR compliance, Milco provides the highest standard of quality control in the industry.

What is Electrical Discharge Machining (EDM)?

Electrical Discharge Machining is a manufacturing methodology that uses electrical current to cut and shape material. This method is favored in industries that rely on robust materials such as biomedical technology or aerospace. Due to the frictionless process warping and deformations are not present as they are in more conventional machining processes. EDM machines can drill into steel, titanium, silver, copper, cobalt, tantalum, iron, tungsten, and aluminium.

What We Offer

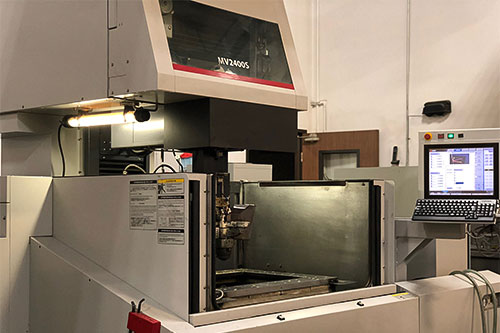

Wire EDM

Wire EDM uses a thin wire electrode on a spool to slice into a work piece.

Wire diameters of: .004", .006", .008", .010", and .012".
Wide/large table travel up to 13.7" x 19.68".
Cutting head Z axis heights up to 11.8".
Up to 45 degree tapered cuts depending on workpiece height.
4 axis, independent movement on all machines.
Top-quality and modern 3R tooling for convenient and expedited setups on production and protoype runs.
Automatic threading capabilities aid in lights out and around the clock manufacturing.
Computer vision measuring devices up to 75x magnification to aid in thorough inspections.

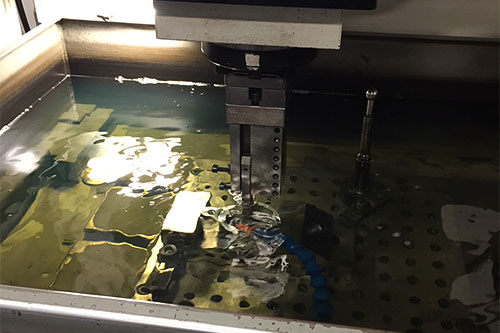

Sinker EDM

Sinker, also called plunge, ram, and die sinker EDM works by slowly sinking a custom-made electrode into a workpiece, leaving an impression of the electrode.

Produces a fine finish and well-defined corners.
Tolerances up to .0001".
24 hour lights out manufacturing capabilities, for large orders & fast turnaround machining.
Automation capabilities with robotic tool changers from System3R.
Standard work envelope capacity of 18"x13"x24".
Repeatability of +/-.00005" for rigorous accuracy demands.
Total machining accuracy down to .0002".
Production finishes down to 8RA.

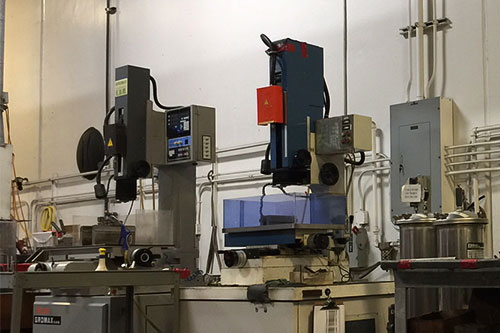

Small Hole EDM

Small hole EDM drilling, or hole-popping, uses a tubular electrode to drill a hole into a workpiece. Small hole EDM often complements wire EDM by drilling a start hole.

Single-hole electrodes for through-hole drilling.
Multi-channel electrodes for blind-hole drilling.
Start hole drilling for wire EDM.
Angled drilling is available.

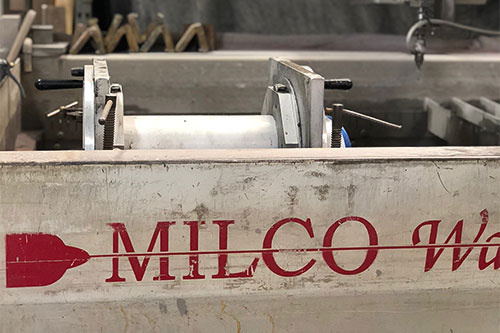

Water Jet Machining

Water jet cutting uses a high pressure water jet and abrasive agents to cut through materials. A versatile machining method that complements EDM.

Smooth surface finish: no burnt edges, chips, burrs, or slag.
Works with common materials: composites, acrylics, ceramics, metals, foams, rubbers, honeycombs, glass to fiberglass, granite, cement, marble, tile and wood.
Works with exotic materials: g10, kevlar, mylar, plastic, polyethylene, polyimide, niobium, and laminates.
Computer control allows for maximization of efficiency.
Low temperature machining with no heat-affected zone.
Environmentally sustainable, with no toxic emissions or waste.

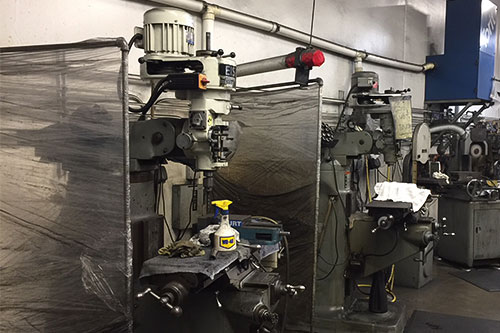

CNC Machining

Mill, lathes, grinders, and engravers.

Custom tooling can be made to aid EDM processes.
Conventional machining complements EDM.
Equipment is certified and maintained.

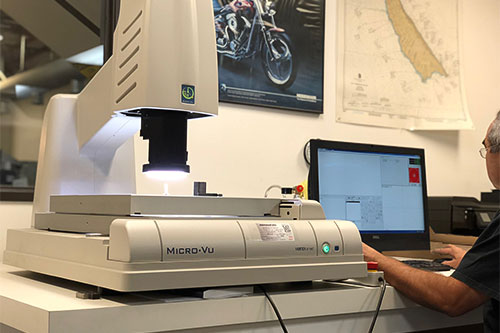

MicroVu Vertext automated precision measurement system.

Quality Assurance

Nadcap Certification.
AS9100 Revision C Certification.
ISO9001:2008 Certified.
ITAR Compliant.
In-house inspection equipment.
